GoWatron (Wuhan) Technology Co., Ltd. factory
MORE ABOUT COMPANY HISTORY

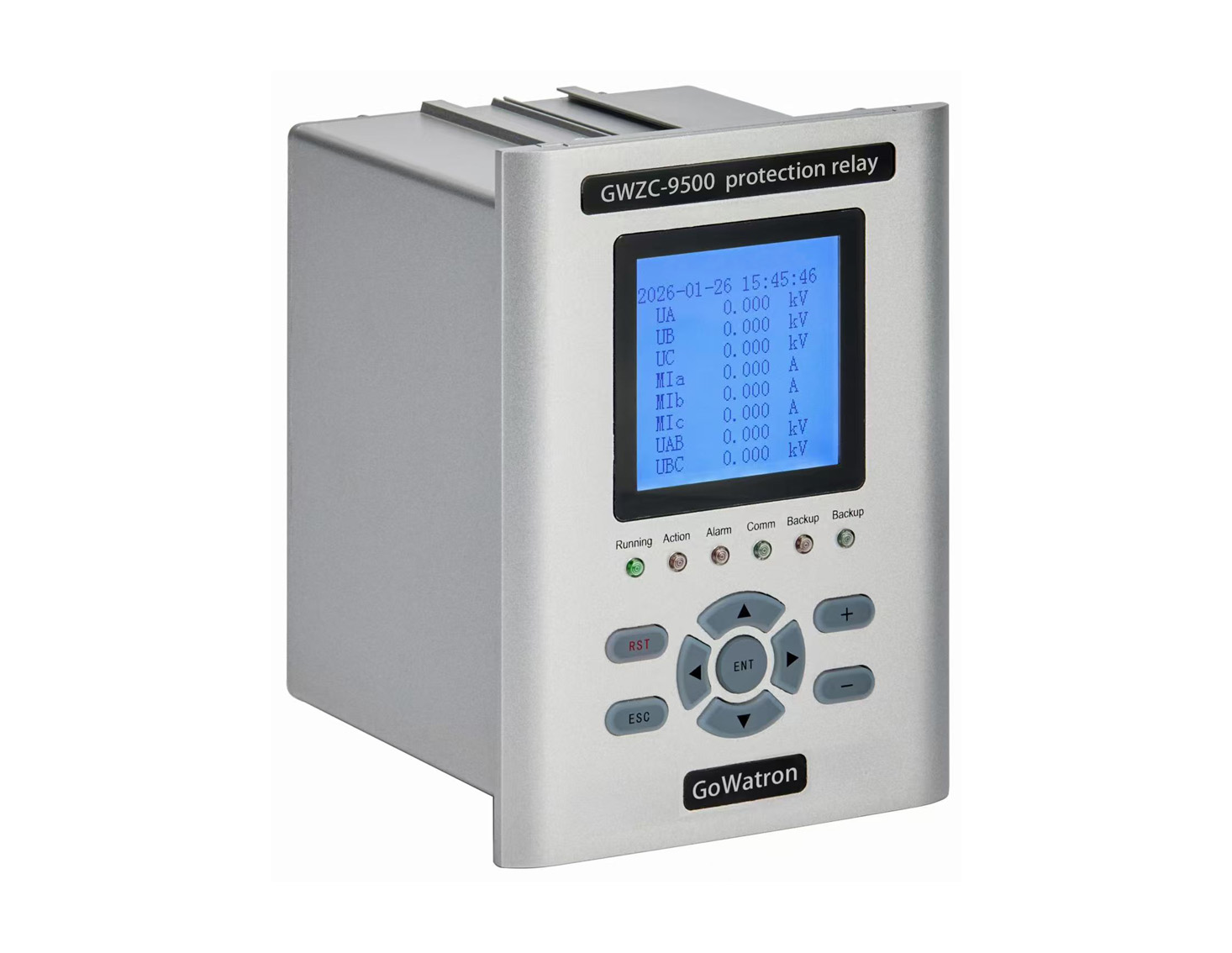

GoWatron (Wuhan) Technology Co., Ltd. specializes in manufacturing a wide range of protection relays for voltages up to 110KV, including optical differential, bus differential, distance, and anti-islanding protection relays. These products are available in multiple series and configurations to meet diverse customer requirements. The company also supplies various system panels, such as PLC panels, excitation panels, industrial control panels, synchronizing panels, protection panels, metering panels, communication panels, remote terminal unit (RTU) panels, dispatching data network panels, AC/DC distribution panels, and more.
With extensive expertise in electrical engineering design and technical support, the company provides end-to-end solutions for power automation systems, including design, installation, and commissioning. Its products and services are widely used in substations, hydropower plants, thermal power plants, industrial facilities, and commercial buildings. Furthermore, the company develops protection control and automated monitoring systems for renewable energy applications, including photovoltaic and wind power generation.
more
Solutions Learn more
Data download More
industry news More
Renovation Scheme for Unattended Automatic System of Hydropower Station
The core of the transformation of the unattended automation system for hydropower stations is to upgrade the traditional manually attended power station into a modern intelligent power station with “unattended operation and minimal personnel on duty” through computerized monitoring, intelligent sensing, reliable communication and remote centralized control. It realizes remote monitoring, automatic control, fault self-diagnosis and safety early warning, greatly…
2026/09/24
Marine Switchboard Market Share Analysis and Development Trend Analysis
Marine Switchboard Market Share Analysis (Current) European Dominance (~55%) ABB, Siemens, and Schneider Electric collectively hold over half the global market, leveraging deep technical expertise, particularly in high-end vessels (LNG carriers, cruise ships). Japanese & Korean Presence (~25%) Yaskawa Electric, Fuji Electric (Japan), Hyundai Heavy Industries, and Samsung Heavy Industries (South Korea) maintain strong positions in RoPAX vessels and container…
2025/07/17
The market share of Chinese switchgear exported to Indonesia
I. Current Market Share Overview Dominant Position Chinese switchgear accounts for approximately 60%-70% of Indonesia’s import market (2023 industry estimates), solidifying its position as the top supplier. This significantly exceeds competitors from Japan (15%-20%), South Korea (<10%), and European manufacturers (Siemens, ABB, which dominate the high-end segment). Key Segments: Chinese manufacturers lead in medium and low-voltage switchgear (<40.5kV) due to…
2025/07/16
Three IEC International Standards for Electrical Relays Led by China Have Been Officially Released!
I. Basic Information on Standard Publication 1.Standard Names & Numbers: IEC 63522-6:2025 Electrical Relays – Tests and Measurements – Part 6: Contact Circuit Resistance (or Voltage Drop) IEC 63522-35:2025 Electrical Relays – Tests and Measurements – Part 35: Resistance to Cleaning Agents IEC 63522-36:2025 Electrical Relays – Tests and Measurements – Part 36: Fire Hazard 2.Issuing Body: International Electrotechnical Commission…
2025/07/07
technical knowledge More

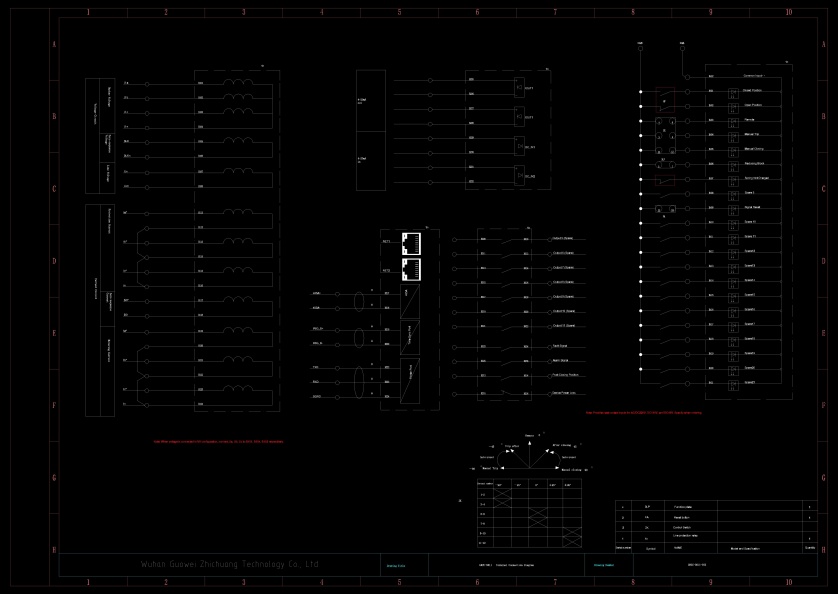

Differences Between Phase-to-Phase Distance Protection (21P) and Ground Distance Protection (21G)
The core difference between phase-to-phase distance protection and ground distance protection lies in the selection of measured quantities, fault response range, and connection methods. They complement each other to form a complete distance protection system for high-voltage transmission lines, both following the basic principle: operation if the measured impedance is less than the setting impedance. Key Principles & Application Notes 1.Measured Quantities & Connection Essence Phase-to-phase distance protection: Uses phase-to-phase voltage and current, directly reflects the positive-sequence impedance of the line without compensation. Suitable for symmetrical or phase-to-phase asymmetrical faults. Ground distance protection: Uses phase voltage and compensated phase current. Zero-sequence compensation eliminates the influence of zero-sequence current during ground faults, so that the measured impedance accurately reflects the fault distance. 2.Complementary Fault Response Two-phase-to-ground short circuit: Both protections operate, providing dual protection. Three-phase short circuit: Both operate correctly, with phase-to-phase distance being more direct. Pure phase-to-phase short circuit (e.g., AB phase): Only phase-to-phase distance protection operates. Single-phase-to-ground fault (e.g., Phase A): Only ground distance protection operates. 3.Setting & Field Application Setting principle: Both adopt a three-zone scheme. Zone 1 is the main protection of the local line (approx. 80%–85%), Zone 2 coordinates with the adjacent line, and Zone 3 acts as backup protection. Field configuration: High-voltage (110 kV and above) lines are usually equipped with both to cover all short-circuit types. Low-voltage or isolated neutral systems may only be equipped with phase-to-phase distance protection. Quick Summary Phase-to-phase distance protection: Measures phase-to-phase quantities, covers phase-to-phase faults, no compensation, circular characteristics. Ground distance protection: Measures phase quantities + compensation, covers ground faults, with zero-sequence compensation, polygonal characteristics. The combination of the two realizes full short-circuit type protection for high-voltage transmission lines, a classic configuration in power system relay protection.
2026/03/04
Generator Protection Relay Panel : Composition and Function
Scope of Application The Generator Protection Relay Panel is mainly suitable for the control and protection of hydraulic units, gas-fired units, biogas units, and large diesel units. Main Components Generator differential protection relay, generator rotor earth fault protection relay, generator backup protection relay, generator measurement and control device, cabinet (2260*800*600 or 2360*800*600) and accessories. Integrating protection, measurement, and communication, the Generator Protection Relay Panel can realize the protection and control of various units, enabling unattended or minimally attended operation. It can achieve generator differential protection, rotor earth fault protection, stator earth fault protection, excitation protection, overcurrent protection, overvoltage protection, overload protection, backup protection, etc. Configuration List of Generator Protection Relay Panel   Detailed Functions 1.Generator Differential Protection: Mainly protects against internal faults of the generator. It acts when phase-to-phase short circuits or turn-to-turn short circuits occur inside the generator. 2.Generator Backup Protection: Mainly protects areas outside the generator. Common protection functions include three-stage current protection, negative sequence overcurrent tripping, loss of excitation protection, loss of excitation tripping, stator earth fault zero current protection, stator earth fault zero voltage protection, stator earth fault dual-frequency protection, stator earth fault tripping, reverse power protection, underfrequency protection, etc. 3.Generator Rotor Earth Fault Protection: Divided into single-point earthing and two-point earthing of the generator rotor. Single-point earthing usually triggers an alarm, while two-point earthing requires tripping to disconnect the generator from the power grid. Features 1.The cabinet adopts a size of 2260 (or 2360) × 800 × 600. Each cabinet can be equipped with 3 layers of devices, with 3 devices per layer. Various Protection Relays, as well as automatic control devices, are physically and spatially distributed to the primary equipment bay layer of the main substation. Each device operates as a complete system with an independent power supply, CPU, and independent operating circuit to complete protection, measurement, control, and other functions for the corresponding bay of the power station. All devices are fully independent in software and hardware design and do not rely on the communication network. 2.The CPU chip of the measurement and control device adopts an internationally advanced DSP chip. Multiple software and hardware measures are adopted, such as isolation, software and hardware filtering, watchdog circuit, anti-interference coding, intelligent diagnosis, various opening and closing control circuits, and a new anti-vibration and anti-interference structural design, which improves the reliability of the device. 3.In the communication system, each device can be directly connected to a computer for communication through a field bus, or communicate with a communication management machine. The collected various information is uploaded to the computer monitoring system through the communication management machine; at the same time, the communication management machine transmits the received various commands to the corresponding devices. The control equipment layer takes the primary equipment in the station as the measurement and control object, adopts an object-oriented approach, comprehensively analyzes the requirements of the substation for information collection, processing, and control, and distributes and configures miniaturized and high-reliability microcomputer protection and measurement and control devices. Each device is relatively independent and can communicate with substation-level equipment to realize comprehensive automation of the substation. 4.The protection panel is designed to protect not only the generator but also the excitation transformer, ensuring the reliable and stable operation of the unit, greatly reducing the probability of generator burnout, and providing a strong guarantee for long-term safe operation. 5.The protection panel is equipped with multiple communication and GPS time synchronization ports, all of which are led to terminals, facilitating communication with the power system background, so as to realize remote measurement, remote control, remote signaling, and remote adjustment of the generator by the power system background computer, and collect parameters such as active power, reactive power, current, voltage, frequency, power factor, and electricity consumption.
2025/11/25
Transformer Protection Relay Panel:Composition and Function
Transformer Protection Relay Panel is primarily used in automation systems for substations and distribution stations in power systems of 11kV, 33kV, 132kV and above. Its main function is to ensure that the transformer can promptly trip the faulty circuit in case of overload, short circuit, gas relay activation, and other abnormal operating conditions, thereby protecting the main transformer from damage and preventing the expansion of faults. Configuration of Transformer Protection Relay Panel The above table shows the typical configuration of a Transformer Protection Relay Panel. The core functions of the key components are detailed as follows: Function of Transformer Protection Relay Panel 1.Transformer Differential Protection Relay: This device provides primary protection for internal transformer faults. Its main functions include percentage differential protection and differential quick-break protection. It operates in response to internal faults such as inter-turn short circuits and phase-to-phase short circuits. 2.Transformer High-Voltage Backup Protection Relay: This relay provides backup protection for the high-voltage side of the transformer and its associated downstream system. Common protection functions include three-stage overcurrent protection, zero-sequence current protection, and voltage-restrained overcurrent protection. 3.Transformer Low-Voltage Backup Protection Relay: This relay provides backup protection for the low-voltage side of the transformer and its associated downstream system. Common protection functions include three-stage overcurrent protection, zero-sequence current protection, and overload protection. Together with the high-voltage backup protection relay, it forms the complete backup protection system for the transformer, which operates if the primary protection fails. 4.Transformer Non-Electrical Protection Relay: This device protects against abnormal mechanical and thermal conditions, such as those detected by the gas relay (Buchholz relay), temperature sensors, and pressure relief devices. It rapidly isolates the transformer in cases of gas accumulation, excessively high or low oil temperature, or sudden pressure increases to prevent further damage. 5.Transformer Monitoring and Control Device: This unit is responsible for monitoring operational data (e.g., currents, voltages, power) and executing control commands, such as opening and closing the transformer’s circuit breakers.
2025/11/24

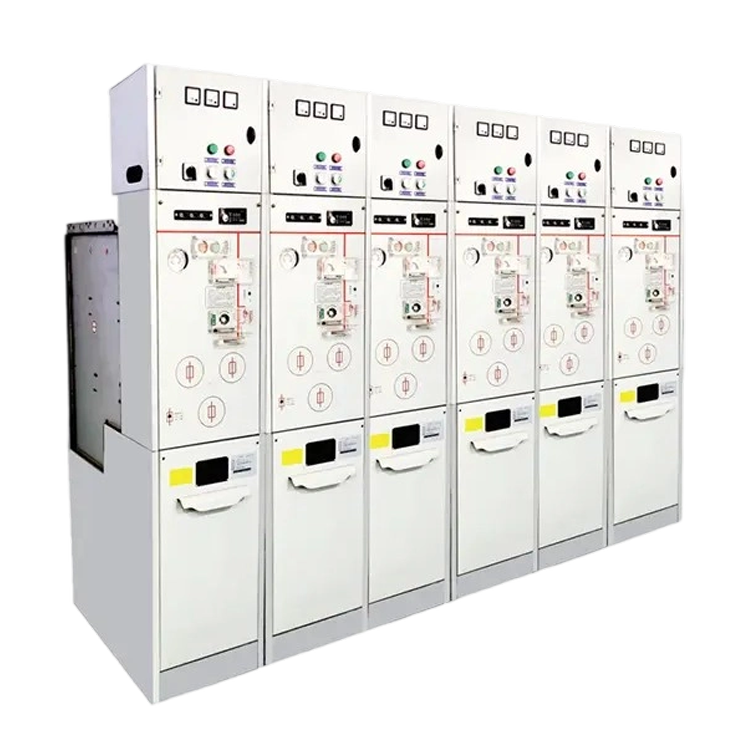

Challenges in Miniaturizing 36kV Switchgear
The miniaturization of switchgear is a common demand in the IEC market. For instance, the standard dimensions for 13.8kV (17.5kV), 1250A switchgear are typically 600mm in width and 2100mm in height, while 3150A versions are generally only 900mm wide. However, 36kV air-insulated switchgear typically has a width of 1000mm, with a maximum current rating of 3150A. Some domestic manufacturers use 40.5kV switchgear as a substitute, but these generally have a width of 1400mm, which is often difficult for high-end clients to accept. So, how can we design miniaturized 36kV switchgear? Firstly, it’s essential to clarify the insulation requirements. The rated voltage of 36kV corresponds to a power-frequency withstand voltage of 70kV, which is 74% of the 95kV required for GB 40.5kV switchgear. Its lightning impulse withstand voltage is 170kV, which is 92% of the 185kV required for GB 40.5kV switchgear. This understanding allows for targeted design of the switchgear. Regarding the circuit breaker itself, the typical phase-to-phase distance is 275/300mm, with a pole unit diameter of 200mm. Typically, the circuit breaker chassis width is only 2×300 + 200 = 800mm. For 36kV circuit breakers with smaller phase-to-phase distances, the chassis width can be further reduced. For example, with a phase spacing of 10 inches (254mm) and a wheelbase of 712mm, the switchgear width could be designed as 1000mm, or even smaller. Conventional 36kV circuit breakers feature a phase spacing of 275mm. The breaker poles are fully insulated, and the moving contacts (arms) are solid-insulated all the way to the contact tips, with only the very tips remaining uninsulated. Conventional 36kV circuit breakers have a phase spacing of 275mm. The breaker pole units are fully insulated, and the moving contacts (arms) are solid-insulated up to the contact tips, with only the very tip being uninsulated. The front compartment depth is 1000mm. The breaker rack-in depth is 360mm, which implies a distance of 300mm from the stationary contacts to the shutters. The folding shutter mechanism requires a 30mm travel to open fully. The tulip contacts and stationary contacts have an engagement depth of 30mm. To ensure electrical insulation between the shutters and the stationary contacts, GPO-3 laminated plates are used. These plates have a thin metal sheet pressed in the center, which provides insulation while also meeting the requirements for the PM (Partition Metal-clad) separation type in switchgear. The use of tubular busbars significantly reduces the required clearances in air. Particularly with large-diameter tubular busbars, a tube with an outer diameter of 100mm and a wall thickness of 10mm can carry a current of 3150A. For the RAYCHEM Type BBIT bushing, the phase-to-phase clearance for rectangular copper bars is 140mm, and the phase-to-earth clearance is 190mm. It also very reasonably indicates that the required spacing for round busbars is less than for rectangular bars. When using circular tubular busbars, a phase-to-phase clearance greater than 100mm and a phase-to-earth clearance greater than 160mm are sufficient, provided the air clearance is greater than 320mm. The clearances for tubular busbars can all meet the requirements mentioned above. A larger diameter leads to a more uniform electric field. For instance, with a 3150A, 100mm diameter busbar, the phase-to-phase air clearance is 275 – 100 = 175mm, which is greater than the minimum distance required for heat-shrink tubing. In a 1000mm wide switchgear panel, the phase-to-earth distance is (1000 / 2) – 275 – 50 – 4 = 171mm, exceeding the required 160mm. Regarding temperature rise under high current conditions, the compact switchgear design first leads to shorter copper busbar lengths, resulting in lower heat generation. Secondly, the compact wind channel design facilitates better heat dissipation. Additionally, GPO-3 insulation plates are used on both sides of the cable compartment and between phases within the switchgear, providing dual protection. In the event of an internal arc fault, these GPO-3 plates can also help prevent the arc from expanding and reduce arc exposure to earth. The current transformers used are IEC 36kV type transformers, which have a compact size and their functionality meets the requirements of IEC customers
